Understanding 40GBASE-ZR4
As network infrastructures continue evolving to meet the demands of data-intensive applications, 40 Gigabit Ethernet remains a relevant solution in many enterprise and telecom environments. Among the various 40G optical modules available, 40GBASE-ZR4 stands out for its ability to support long-distance transmission, making it a key asset for wide-area and inter-campus networks. Unlike its short-reach counterparts, the ZR4 variant is engineered to deliver 40G Ethernet over single-mode fiber at distances of up to 80 kilometers.

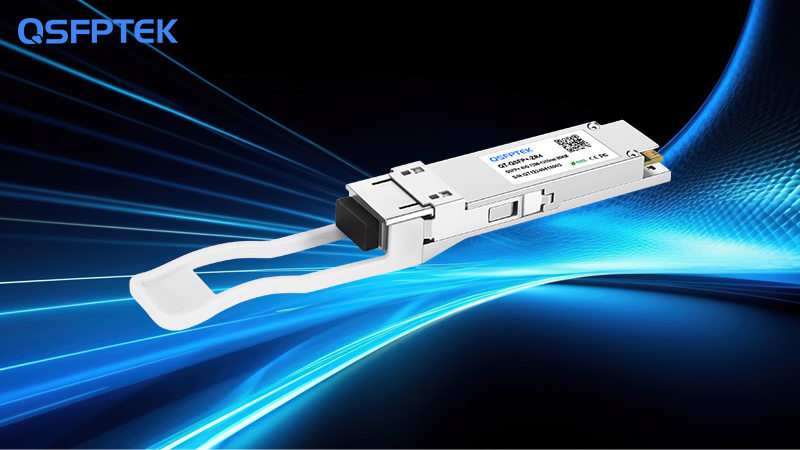

Though not officially standardized by the IEEE, 40GBASE-ZR4 is widely adopted under multi-source agreements (MSAs) that define its physical and operational characteristics. It typically uses the QSFP+ form factor, making it compact and suitable for modern high-density networking equipment. This module plays a critical role in bridging long physical distances without the need for complex coherent optics or signal regeneration.
Key Technical Features
At the core of 40GBASE-ZR4 is a coarse wavelength division multiplexing (CWDM) architecture. The module operates on four CWDM channels in the 1270 nm to 1330 nm wavelength range. Each channel transmits data at 10 Gbps, which are then multiplexed to form a full 40G signal. These optical lanes are sent over a duplex LC connector using single-mode fiber (SMF), which offers minimal attenuation and allows signals to travel longer distances with greater efficiency.
The module also features digital diagnostic monitoring (DDM), enabling real-time monitoring of key metrics such as optical power, temperature, voltage, and laser bias current. Power consumption is typically higher than short-reach modules like 40GBASE-SR4 or LR4, usually in the range of 3.5 to 5 watts, depending on the manufacturer and deployment environment.
How 40GBASE-ZR4 Enables Long-Distance Transmission
To maintain signal integrity over extended distances, 40GBASE-ZR4 modules often rely on built-in forward error correction (FEC), either within the transceiver or handled at the system level by the switch or router. This technique corrects transmission errors caused by fiber impairments, improving overall link performance without the need for external signal boosters or regenerators.
In some network environments, erbium-doped fiber amplifiers (EDFAs) or dispersion compensation modules (DCMs) may be employed alongside ZR4 optics to enhance performance. However, many deployments find the module’s inherent capabilities sufficient for transmission up to 80 km, especially when deployed on clean, high-quality fiber paths.
Common Applications and Deployment Scenarios
The 40GBASE-ZR4 module is particularly valuable for organizations that need to connect data centers or campus networks across large geographic areas. It is commonly deployed in metropolitan area networks (MANs), where it can link facilities or aggregation points across a city or region. Enterprises with multiple campuses can also use ZR4 modules to maintain high-speed connectivity without investing in additional networking layers.
In the telecommunications sector, 40GBASE-ZR4 plays a role in carrier-grade backbone networks, particularly in areas where 100G adoption is still ramping up or where cost constraints favor 40G solutions. It offers a viable path for scaling up from 10G links without committing to the power and complexity of 100G or coherent optics.
Benefits and Limitations
The primary advantage of 40GBASE-ZR4 lies in its long reach and reliability over SMF. Compared to other 40G modules like SR4 (short reach, 100 meters over MMF) or LR4 (long reach, 10 km over SMF), ZR4 significantly extends the operational distance, opening up new deployment possibilities. Its compatibility with the QSFP+ form factor also ensures broad support across switches and routers from major vendors.
However, these benefits come with trade-offs. ZR4 modules are more expensive than their short- and medium-range counterparts due to the complexity of the optics and higher power requirements. They also require clean, high-quality fiber to maintain optimal performance, making deployment planning more critical than with shorter-reach modules. Network administrators must account for factors like fiber loss, splicing quality, and connector cleanliness to avoid performance degradation.
Compatibility Considerations
Because 40GBASE-ZR4 is defined by MSA rather than IEEE, compatibility can vary slightly between vendors. It is important to verify that the transceiver modules are interoperable and supported by the network hardware in use. Most enterprise-grade switches that support QSFP+ transceivers are compatible with ZR4, but firmware and configuration may need to be updated to ensure optimal operation.
Furthermore, ensure the receiving end of a ZR4 link uses an identical ZR4 module or one that supports the same CWDM wavelength range and signal characteristics. While fiber infrastructure may not need modification, careful attention should be paid to optical budget calculations and power levels.
The Role of 40GBASE-ZR4 in Modern Networks
Although many organizations are migrating to 100G and beyond, 40GBASE-ZR4 still offers a practical and cost-effective solution for many long-distance networking needs. It fills an important gap between short-reach modules and more expensive coherent solutions. For businesses and service providers needing stable, high-speed links over 40 to 80 km, without the operational complexity of higher-speed coherent optics, ZR4 remains a compelling option.
In environments where 100G infrastructure may still be out of reach or unnecessary, 40GBASE-ZR4 provides a mature, tested, and widely available alternative. Its performance, reach, and form factor make it particularly useful in networks that are incrementally scaling bandwidth while maintaining compatibility with existing QSFP+ platforms.
Conclusion
The 40GBASE-ZR4 optical module represents a critical piece of the 40G Ethernet ecosystem, enabling long-distance, high-capacity communication over existing single-mode fiber infrastructure. Whether you’re extending connectivity between campuses, data centers, or metro aggregation sites, ZR4 offers a balance of performance and practicality. While the industry moves forward to higher data rates, 40GBASE-ZR4 remains a robust and efficient solution for long-reach optical networking.
